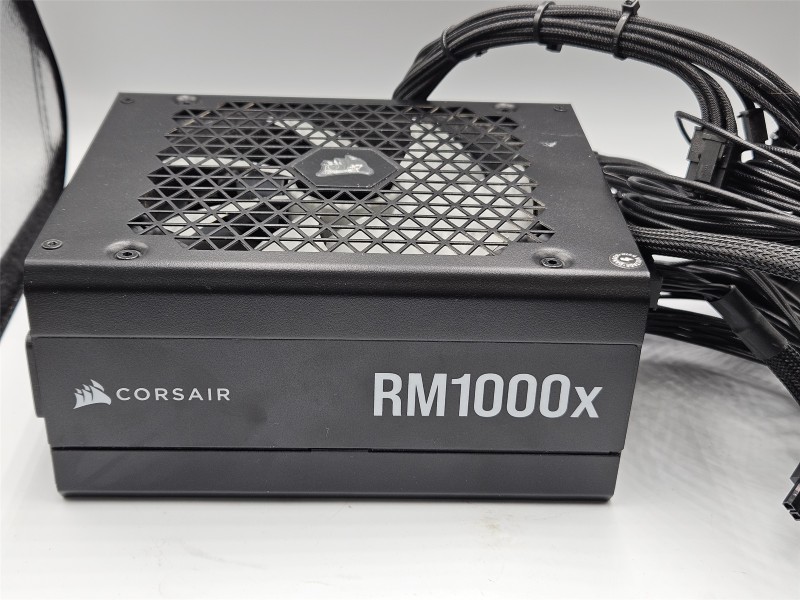

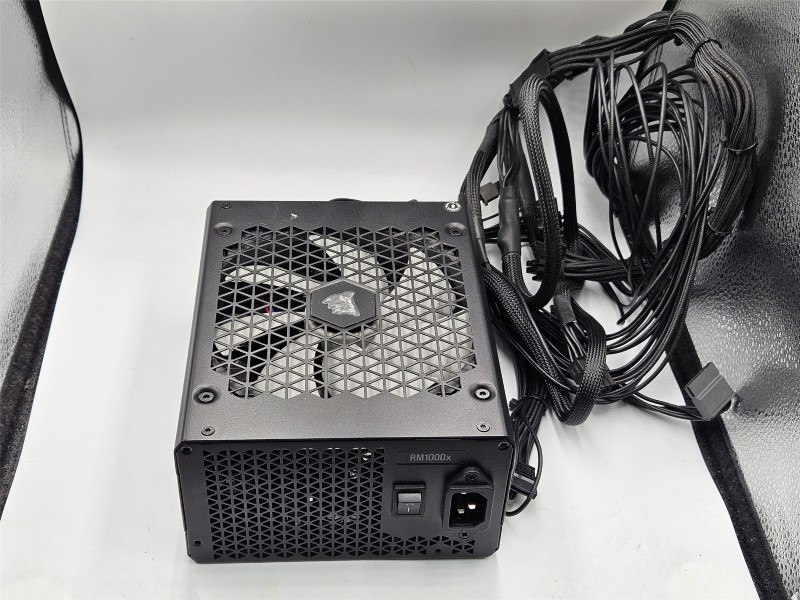

Corsair Rm1000x (Untested) Black Power Supply

The Corsair RM1000x RPS0125 is a high-performance 1000W ATX power supply, ideal for powerful gaming PCs, workstations and systems with high-end graphics cards. It features a fully modular design, allowing you to connect only the cables required for your build and helping to keep cable management neat.

The RM1000x is 80 PLUS Gold certified and uses a 135mm Magnetic Levitation fan with Zero RPM mode for quiet operation at low and medium loads. It provides up to 999.6W on the +12V rail, making it well suited to demanding CPU and GPU configurations.

Key Features:

1000W continuous power output
Model: RPS0125
Part Number: CP-9020201
80 PLUS Gold efficiency
Fully modular cabling
ATX form factor
ATX12V 2.53 / EPS 2.92 compatible
+12V rail: 83.3A / 999.6W
135mm Magnetic Levitation fan
Zero RPM fan mode
3 × EPS connectors
6 × PCIe connectors
14 × SATA connectors
Type 4 modular cables
Japanese 105°C-rated electrolytic capacitors
Multiple protection systems including OVP, UVP, SCP, OTP and OPP
Multi-GPU ready
Dimensions: 150 × 86 × 180mm
Weight: approximately 3.7kg
100,000-hour MTBF
